TCP Working: 3-Way Handshake & Reliable Communication
S
Saurabh Prajapati

Have you ever wondered how your messages reach exactly the right person when you're chatting online? Or how Netflix knows which part of a movie to send to your screen next?

The answer is TCP – one of the most important protocols running quietly in the background every time you use the internet.

And honestly? When I first learned about it, I thought, "Wait, there's this much going on just to send a simple message?"

Let me break it down for you in the simplest way possible.

What Happens If We Send Data Without Any Rules?

Imagine you're trying to tell a story to your friend over a bad phone connection.

You start talking:

  • "So yesterday I went to…"

  • Connection drops

  • "…and then I saw a dog…"

  • Static noise

  • "…it was hilarious!"

Your friend only hears random pieces of your story.

They don't know:

  • What came first

  • What's missing

  • If they heard everything

That's exactly what happens when computers try to send data without rules.

Packets (chunks of data) can:

  • Arrive in the wrong order

  • Get lost along the way

  • Arrive corrupted or damaged

  • Arrive multiple times (duplicates)

A mess, right?

This is where TCP steps in to fix everything.

What is TCP and Why Do We Need It?

TCP stands for Transmission Control Protocol.

Think of it as a rulebook that ensures:

  • Data reaches the destination safely

  • Data arrives in the correct order

  • Nothing is lost or duplicated

  • Both sides agree before starting communication

It's like having a professional delivery service instead of just throwing your package out the window and hoping it lands at the right house.

Where is TCP used?

Pretty much everywhere:

  • Web browsing (HTTP/HTTPS)

  • Email (SMTP, IMAP)

  • File transfers (FTP)

  • Video calls and streaming

Basically, any application that can't afford to lose data uses TCP.

Problems TCP is Designed to Solve

Let me make this super clear.

Without TCP, here's what could go wrong:

1. Packets Arrive Out of Order

Imagine receiving a book where:

  • Chapter 5 comes first

  • Then Chapter 2

  • Then Chapter 8

You'd have no idea what the story is about.

TCP fixes this by numbering each piece of data so it can be reassembled correctly.

2. Packets Get Lost

Sometimes data just disappears on the network.

Like sending 10 letters in the mail, but only 7 arrive.

TCP notices the missing pieces and asks for them again.

3. Packets Arrive Corrupted

Data can get damaged during transmission.

Think of it like a letter that got soaked in the rain and half the words are unreadable.

TCP checks each packet to make sure it's not damaged. If it is, TCP throws it away and requests a fresh copy.

4. No Confirmation of Delivery

If you send a message and never get a reply, you don't know if it was received.

TCP makes sure both sides confirm they got the data.

It's like:

  • You: "Did you get my message?"

  • Friend: "Yes, I got it!"

Now you're sure.

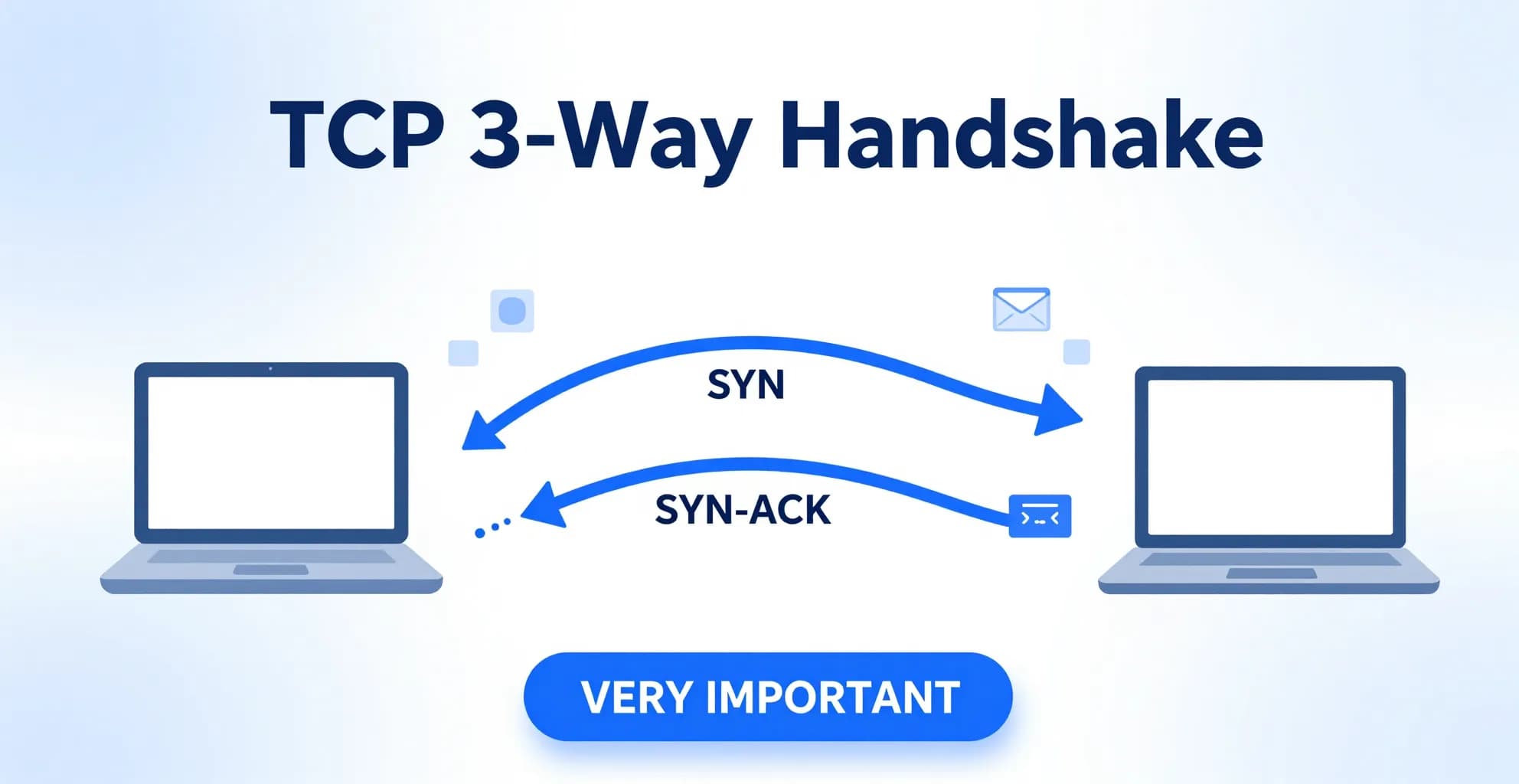

What is the TCP 3-Way Handshake?

Before two computers start sending actual data, they need to introduce themselves and agree to communicate.

This process is called the 3-way handshake.

Think of it like this:

You want to call a friend:

  1. You: "Hey, can you hear me?" (SYN)

  2. Friend: "Yes, I can hear you! Can you hear me?" (SYN-ACK)

  3. You: "Yes, I can hear you too! Let's talk." (ACK)

Now the conversation begins.

That's exactly how TCP works.

Let me show you step by step.

Step-by-Step: The TCP 3-Way Handshake

Step 1: Client Sends SYN (Synchronize)

The client (your computer) wants to connect to a server (like Google or Netflix).

It sends a message:

"Hey server, I want to talk to you. Here's my starting sequence number: 1000."

This message is called SYN (Synchronize).

The sequence number is like a ticket number – it helps keep track of the data being sent.

Step 2: Server Sends SYN-ACK (Synchronize-Acknowledge)

The server receives the SYN message and replies:

"Got it! I'm ready to talk. Here's my starting sequence number: 5000. And yes, I received your number 1000."

This message is called SYN-ACK.

It's doing two things:

  1. Sending its own sequence number (SYN)

  2. Acknowledging the client's number (ACK)

Step 3: Client Sends ACK (Acknowledge)

The client receives the server's reply and sends back:

"Perfect! I got your number 5000. Let's start!"

This is the final ACK (Acknowledgement).

Now both sides are synchronized and ready to exchange data.

Diagram: TCP 3-Way Handshake

Client                          Server
  |                                |
  |-------- SYN (seq=1000) ------->|
  |                                |
  |<----- SYN-ACK (seq=5000) ------|
  |       (ack=1001)               |
  |                                |
  |-------- ACK (ack=5001) ------->|
  |                                |
  |   Connection Established!      |

Notice how the acknowledgment numbers are one more than the sequence numbers?

That's TCP saying: "I got your number, and I'm ready for the next one."

How Data Transfer Works in TCP

Once the handshake is done, data transfer begins.

Here's how it works:

1. Data is Split into Segments

Your data (like a webpage or video) is too big to send all at once.

So TCP breaks it into small pieces called segments.

Each segment gets a sequence number.

2. Segments are Sent One by One

The client sends:

Segment 1 (seq=1000, data="Hello")
Segment 2 (seq=1005, data="World")

3. Server Acknowledges Each Segment

After receiving each piece, the server replies:

ACK (ack=1005) → "Got segment 1"
ACK (ack=1010) → "Got segment 2"

This way, the client knows for sure that the data was received.

Diagram: Data Transfer with Sequence Numbers

Client                          Server
  |                                |
  |--- seq=1000 ("Hello") -------->|
  |                                |
  |<------- ack=1005 --------------|
  |                                |
  |--- seq=1005 ("World") -------->|
  |                                |
  |<------- ack=1010 --------------|

Simple, right?

How TCP Ensures Reliability, Order, and Correctness

Now let's talk about the magic of TCP.

1. Ordering Data Using Sequence Numbers

Even if packets arrive out of order, TCP uses sequence numbers to reassemble them correctly.

Example:

  • Packet 3 arrives first

  • Then Packet 1

  • Then Packet 2

TCP reorders them before passing the data to your application.

2. Detecting Lost Packets

If the client sends segment 1000 but never gets an ACK back, it knows something went wrong.

After waiting a bit, TCP resends the segment.

This is called retransmission.

3. Checking for Corruption

Every TCP segment includes a checksum – a small number calculated from the data.

When the server receives the segment, it recalculates the checksum.

If the numbers don't match, the data is corrupted and is thrown away.

The client will resend it automatically.

Diagram: Packet Loss and Retransmission

Client                          Server
  |                                |
  |--- seq=1000 ("Hello") -------->|
  |                                |
  |         (packet lost)          |
  |                                |
  |   ... timeout ...              |
  |                                |
  |--- seq=1000 ("Hello") -------->|  (resend)
  |                                |
  |<------- ack=1005 --------------|

TCP is patient. It waits, and if needed, tries again.

How a TCP Connection is Closed

Once the data transfer is complete, the connection needs to be closed properly.

This is done using a 4-step process with FIN (Finish) and ACK messages.

Step 1: Client Sends FIN

The client says:

"I'm done sending data."

Step 2: Server Sends ACK

The server replies:

"Got it. I'll finish up."

Step 3: Server Sends FIN

The server says:

"I'm done too."

Step 4: Client Sends ACK

The client replies:

"Okay, goodbye!"

Now the connection is fully closed.

Diagram: TCP Connection Termination

Client                          Server
  |                                |
  |---------- FIN ---------------->|
  |                                |
  |<---------- ACK ----------------|
  |                                |
  |<---------- FIN ----------------|
  |                                |
  |---------- ACK ---------------->|
  |                                |
  |   Connection Closed!           |

It's polite, right? Both sides agree before hanging up.

TCP Connection Lifecycle (Full Picture)

Let me show you the entire journey of a TCP connection:

1. Establish Connection (3-Way Handshake)
   ↓
2. Transfer Data (with sequence numbers and ACKs)
   ↓
3. Close Connection (FIN and ACK)

Every time you load a website or stream a video, this entire cycle happens in milliseconds.

Pretty amazing.

Why TCP is So Important

Honestly, without TCP, the internet as we know it wouldn't exist.

Here's why:

  • Web browsing wouldn't work reliably

  • Emails could arrive incomplete

  • File downloads would get corrupted

  • Video calls would be a disaster

TCP is the invisible hero making sure everything just works.
